Products

Pellet equipment, pellet plant

Pellet equipment, pellet plant
Description

Pellet equipment

Handan metallurgical engineering & Research Co. Ltd (MER) currently is the China Top professional company majoring in design, equipment manufacturing, installation, production, training, and commission in China. So far, the company has undertaken more than 20 various types rotary kiln and belt type of oxidized pellet project.We have Chinese best Pellet Machinery.

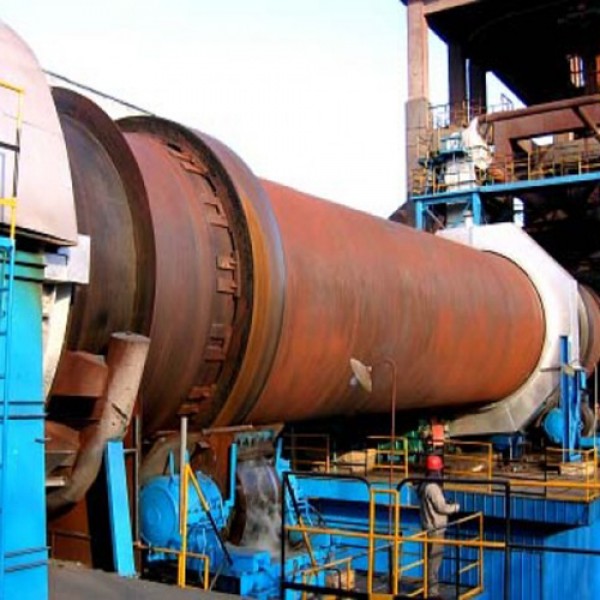

MER rotary kiln of oxidized pellet production line, which is developed independently, adopts 'traveling grate- rotary kiln-circular cooler' advanced technology. The hot exhaust and the process water both are recycled, the secondary energy are made most use of. The hot exhaust is recycled to dry, preheat and firing the green pellets. For meet the large capacity market, we developed belt type pellet technology by absorbing the top technology from home and aboard, which is welcomed in the market. The heat is used efficiently. This production line takes advantages of energy saving, water saving, clean environment, and broad fuel adaptability. The productions are of high quality, and are high-quality raw material for blast furnace. As its economic and environmental benefit, the company has designed and installed many MER oxidized pellet production line for big iron and steel corporations and mines at home and abroad.

The company has strong ability to offer equipment of furnace kiln. The company also possesses series products of MER energy saving oxidized pellet with self-owned intellectual property. The products specifications includes 200kt/a, 300kt/a, 600kt/a, 800kt/a, 1Mt/a, 1.2Mt/a, 2Mt/a, 2.5Mt/a, and 5Mt/a.

Technical Specification

Adopting advanced international technology, Handan metallurgical engineering and Research Co., Ltd. develops MERSQ burner. It is HP Forced Swirl Multi-channel Burner and is executively designed for pellet rotary kiln depending on fuel powder, coal gas, natural gas, and heavy oil.

• Flame shape is regular, complete, and stable. Sweeping of furnace lining will not appear. Ringing will be avoided, so it can prolong the service life of furnace lining.

• Good mixing of fuel and combustion-supporting wind could lead to full burning. It could raise the heating intensity of furnace, and reach the purpose of increasing production and reducing energy consumption.

• Reasonable flame shape can bring uniform burning temperature distribution. So it could protect furnace mouth and cylinder.

• Reducing the content of CO and NOx, ensuring the safety operation of dust removal behind the kiln and environment protection.

• Controlling valve is equipped in each ventilation circuit, and it's flexible in adjusting the air volume and proportion of it in respective circuit, thus controlling and adjusting the ejection speed to adjust the shape of flame and combustion intensity


Pellet equipment, pellet plant

Pellet equipment, pellet plant


Customer Case

Oxidized Pellet Project

建设规模

时间

1

Xinxing Ductile Iron Pipe Corporation Ltd.

600,000tpa

2002

2

Wuhu Iron and Steel Co., Ltd

700,000tpa

2004

3

Xinyang Iron and Steel Co., Ltd

600,000tpa

2005

4

Xingcheng Special Steel Co., Ltd.

1,200,000tpa

2006

5

Qianjin Iron and Steel Co., Ltd.

850,000tpa

2005

6

Shanxi Hongwei Mining Co., Ltd.

300,000tpa

2004

7

Taishan Iron and Steel Co., Ltd.

800,000tpa

2006

8

Shanxi Hongwei Mining Co., Ltd.

800,000tpa

2006

9

Shandong Yaochang Pellet Co., Ltd.

600,000tpa

2007

10

 Huangmailing Oxidized Pellet Project

300,000tpa

2007

11

 Xingcheng Special Steel Oxidized Pellet Project

1,200,000tpa

2008

12

 Oxidized pellet protect for Baotou Iron & Steel Co., Ltd.

1,200,000tpa

2008

13

Hebei Jingye Iron and Steel Group.

1,200,000tpa

2009

14

Oxidized pellet project for India XINDIA

800,000tpa

2009

15

Wu’an Wantianxin Pellet Co., Ltd

600,000tpa

2009

16

Xinxing Special Steel Co., Ltd

600,000tpa

2011

17

Hebei Xinghua Iron and Steel Co., Ltd

600,000tpa

2011

18

Shandong Yaozhu Pellet Co., Ltd

2,000,000tpa

2012

19

Jinmo Iron pyrite slag pellet Project

400,000tpa

2016

20

Guigang Iron and Steel Group

1,200,000tpa

2019

21

Tangshan Guotang Iron and Steel Group

2,000,000tpa

2020
